Description

Description:

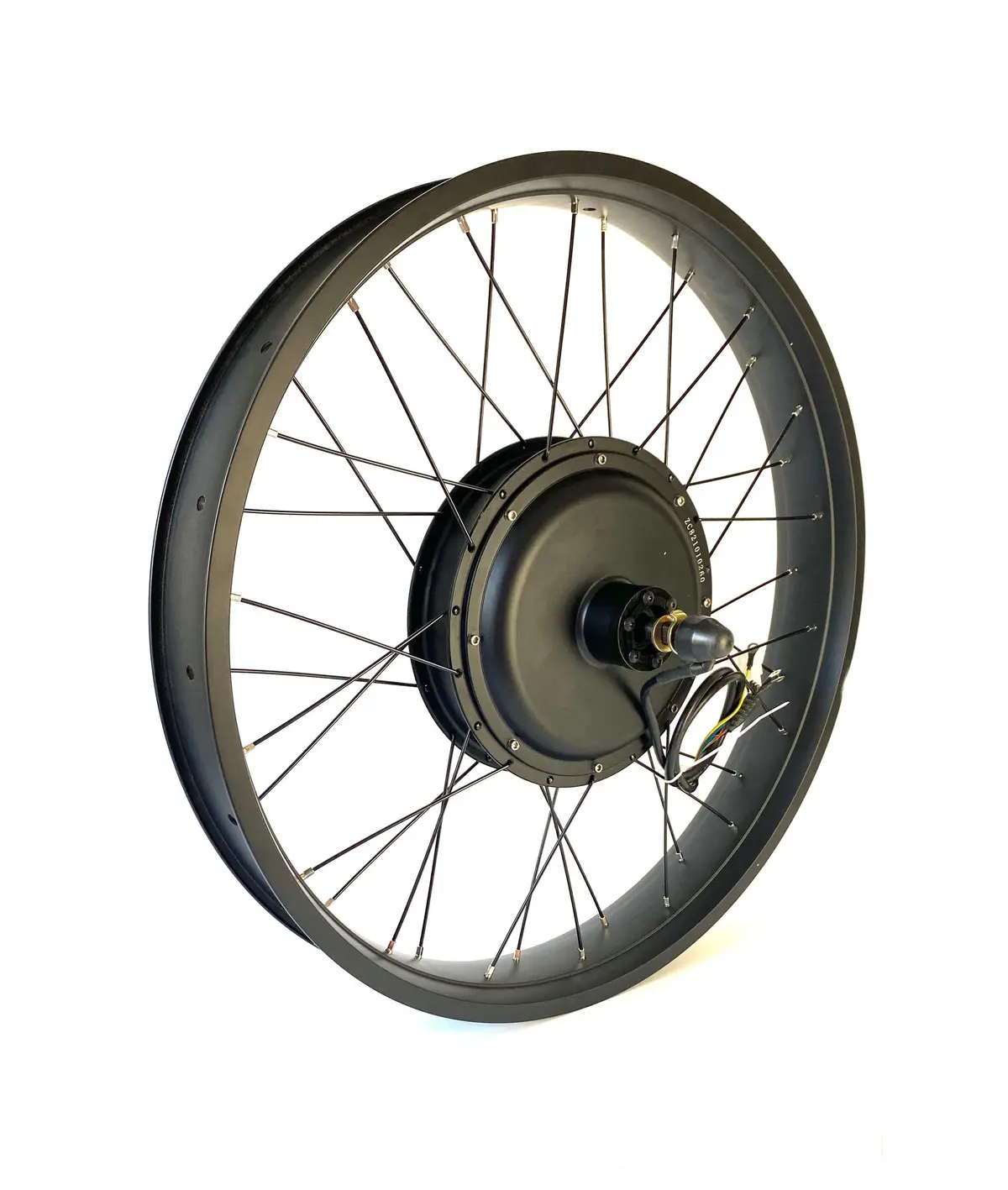

This 26 inch 48V  1500W rear beach snow fat bike motor kit combines full e-bike technology:  Brushless Gearless high torque hub Motor to change almost any bicycle into a personal electric bike. Save energy,  save money, help the environment, and have fun!

Features:

• Rim: 26 × 3 inch double wall Alloy (Rim Fit For: 26 × 3.45″ / 4.00″ tire)

• Spoke: 12 gauge / 160mm Length × 36 pcs

• Engine: Brushless hub motor

• Voltage: 48V

• Power: 1500W

• Unloaded Max speed: 72.9 kmh  (Optional other speed: 35mph or 25mph,15mph…)

• Mechanical brake: Disk or  V

• Efficiency: 90.5%

• Freewheel

• Cable location: LEFT shaft hand

• Surface: painted black

• Cable length:100cm / 40″

• Rear frame fork / Install: 190mm

• Noise: < 60 db

• Surface: painted black

• Driver: brushless controller

• Rated Voltage: DC 48 Volts

• Min. Voltage: DC 40 ± 0.5 V

• Rated power: 1500 Watts

• MOSFET: 18 PCS

• With LCD: YES

• Casing material: aluminium

• Maximum Current: 45 A ± 1 Amps

• Operating Conditions: -20~45 °C

• Waterproof design

• Size: 234 mm L × 82 mm W × 42 mm H

LCD Functions:

• Cruise

• Forward & Backward (Optional)

• Regen brake

• Kmh & mph (Optional)

• Set Max speed ( 0 ~ 72 kmh / 45 mph )

• Pedal assist ( 1 – 5 )

• Temperature

• Motor power

• Timer

• Battery gauge

Package Contents:

• 1 x 26 inch 48V  1500W rear hub motor wheel – (Fit for 26 × 3.45″ or 26 × 4.00″ fat tire / snow / beach)

• 1 x 48V 18-MOSFET 45A motor controller

• 1 x LCD ( display speed, mileage, battery gauge.)

• 1 x Twist throttle — Cable length: 1500mm

• 1 x Brake levers — Cable length: 1500mm

• 1 x Three button switches ( control cruise, regen brake, reverse .. ) — Cable length: 1500mm

• 1 x Pedal assist — Cable length: 1500mm

Battery not included
