Description
- SUSPENSION: SR Suntour XCM HLO
- WHEEL SIZE: 29″
- FRAME: Aluminum
- SIZE RANGE: S, M, L, XL
HARDTAIL TRAIL RIDING
AGGRESSIVE SINGLETRACK

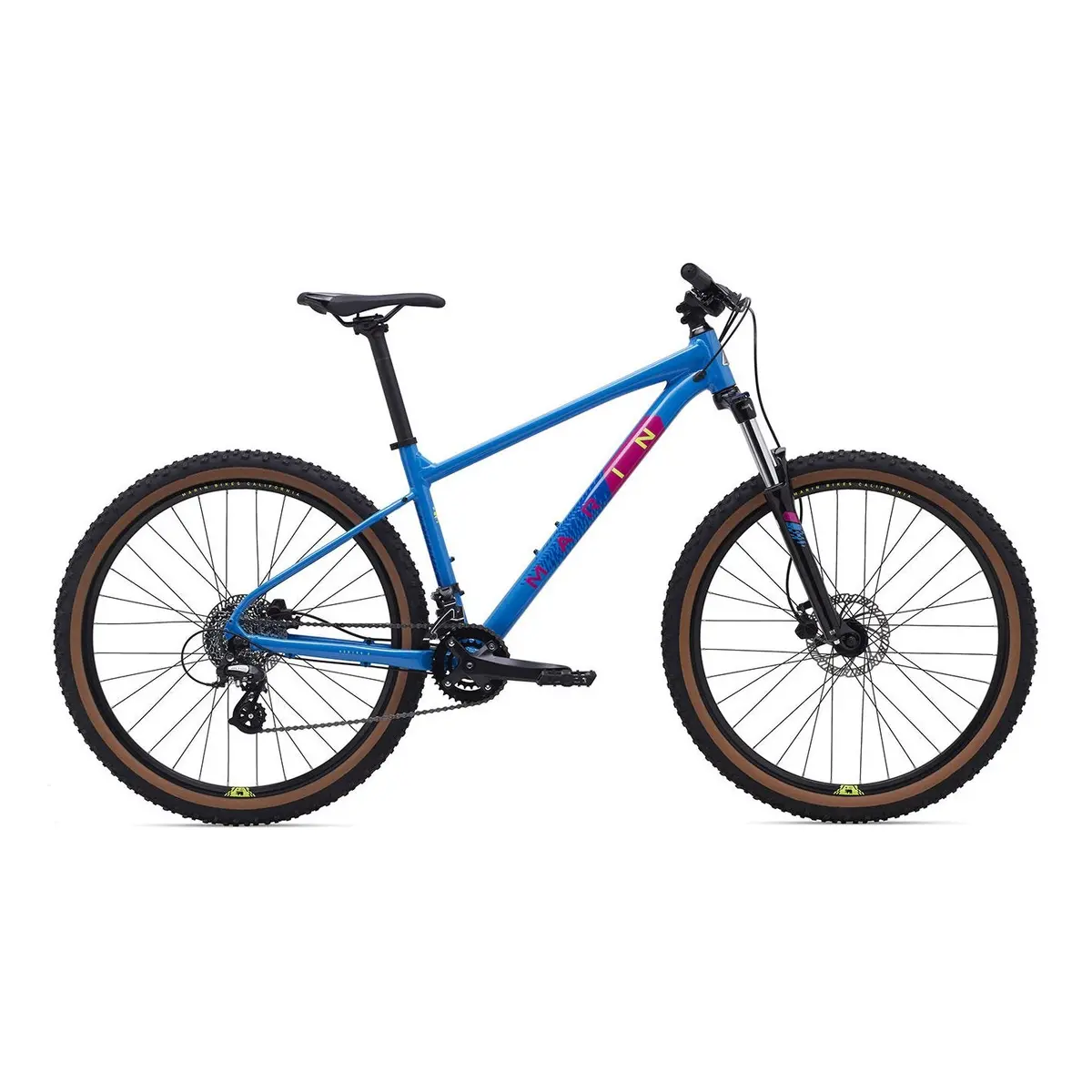

The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.
Key upgrades over the Bolinas Ridge 2:

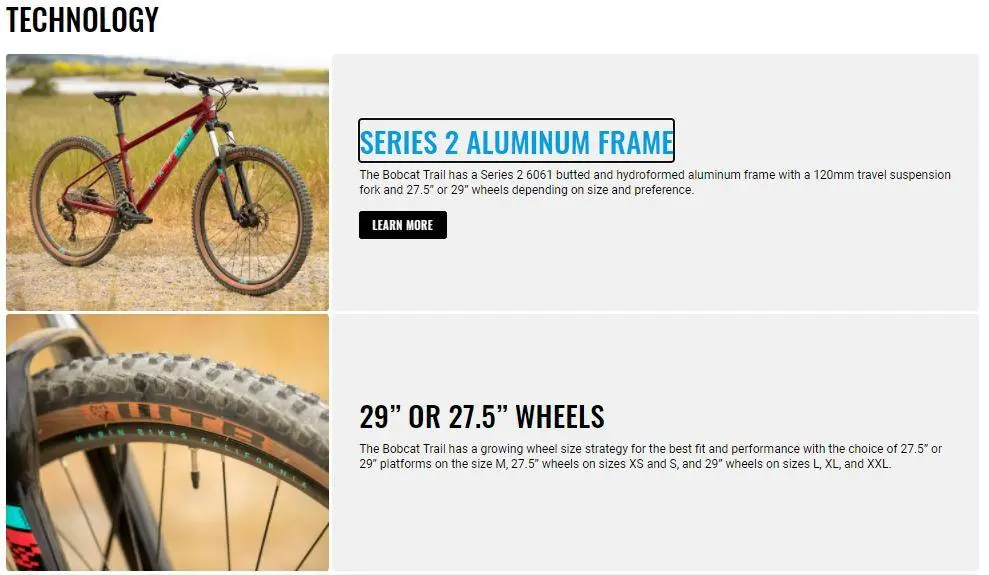

- Series 2 aluminum frame w/double butted tubing & internal cable routing
- SR Suntour XCM HLO fork w/120mm travel & hydraulic lockout
- Tektro hydraulic disc brakes
XC TRAIL
| XS | S | M (27.5) | M (29) | L | XL | |
|---|---|---|---|---|---|---|
| A Stack | 594.7 | 599.3 | 604 | 629.3 | 634 | 638.5 |
| B Reach | 420 | 435 | 445 | 445 | 465 | 480 |
| C Headtube Angle | 67.5° | 67.5° | 67.5° | 67° | 67° | 67° |
| D Headtube Length | 100 | 105 | 110 | 110 | 115 | 120 |
| E Seattube Angle | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| F Seattube Length | 330 | 381 | 431 | 431 | 482 | 520 |
| G Toptube Effective | 585 | 601 | 612.5 | 619.5 | 640.8 | 657 |
| H BB Height | 307 | 307 | 307 | 311.5 | 311.5 | 311.5 |
| I BB Drop | 48 | 48 | 48 | 61 | 61 | 61 |
| J Chainstay | 425 | 425 | 425 | 440 | 440 | 440 |
| K Wheelbase | 1116.4 | 1133.3 | 1145.2 | 1177.4 | 1199.3 | 1216.3 |
| L Standover Height | 639.42 | 659.07 | 705.48 | 714.04 | 744.93 | 774.59 |
| M Fork Offset | 46 | 46 | 46 | 46 | 46 | 46 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 | 780 |
| Stem Length | 45 | 45 | 45 | 45 | 45 | 45 |
| Crank Length | 170 | 170 | 175 | 175 | 175 | 175 |
