Description

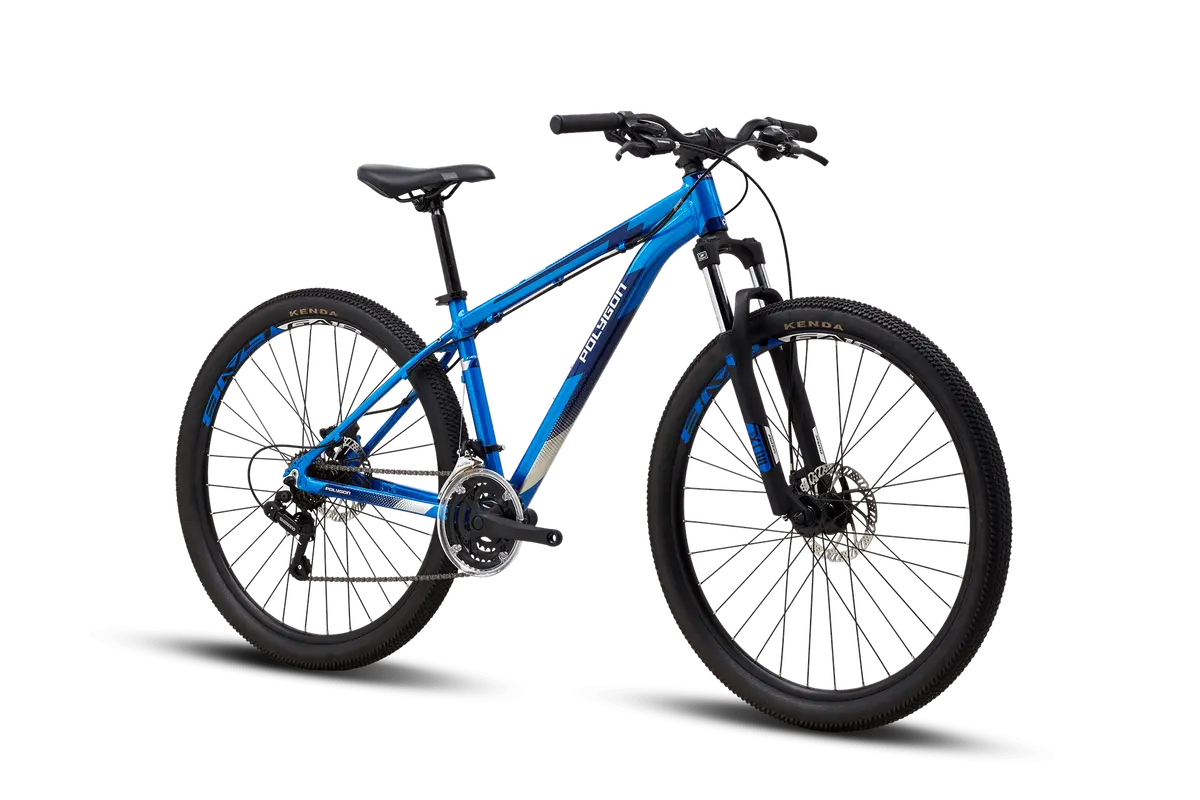

The Cascade 2 was created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays, and planning to go for recreational riding on the weekends. The Cascade is built with a lightweight and durable AL6 frame with modern geometry for a more comfortable ride. The component spec includes: 27.5” wheels for less rolling resistance, a 100mm travel suspension fork to smooth out the bumps while riding down fire roads, and disc brakes to keep riders in control. The new Cascade 2 is a reliable companion for day-to-day use and sport.
|
AL6 XC SPORT FRAME |
|
SUNTOUR XCE28 100mm TRAVEL |
|
– |
|
ZS 44/28.6 | ZS 44/30 |
|
ENTITY OE E: 45MM, BB: 31.8MM |
|
STEEL W:680MM R:40MM BB:31.8MM |
|
SHIMANO RD-TY200 6/7-SPEED DA |
|
SHIMANO ST-EF41 3X7 SPEED |
|
CARTRIDGE BB |
|
WHEELTOP TCSH2-CFPG 42/34/24T 170 MM |
|
SHIMANO TZ500 7-SPEED 14-28T |
|
KMC HV-500 7-SPEED |
|
PP FLAT PEDAL |
|
TEKTRO MD-M280 DISC BRAKE |
|
DOUBLE WALL ALLOY RIMS W/ ALLOY HUBS |
|
PERFORMANCE TIRE 27.5″ X2.1 |
|
FOMING STEEL RAIL |
|
STEEL CANDLE TYPE 27.2MMX300MM |
|
27.5 |
|
Blue |
|
– |
| Height/cm | 152.5-165 | 162.5-175 | 172.5-185 | 182.5-195 |
|---|---|---|---|---|
| Size | S | M | L | XL |
| Seat Tube Length/in | ✔ | ✔ | ✔ | ✔ |
Geometry
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 456 | 73 | 73 | 105 | 69 | 585 | 303 | 47 (DROP) | 430 | 1086.1 | 402.2 | 597.8 | 747 |
