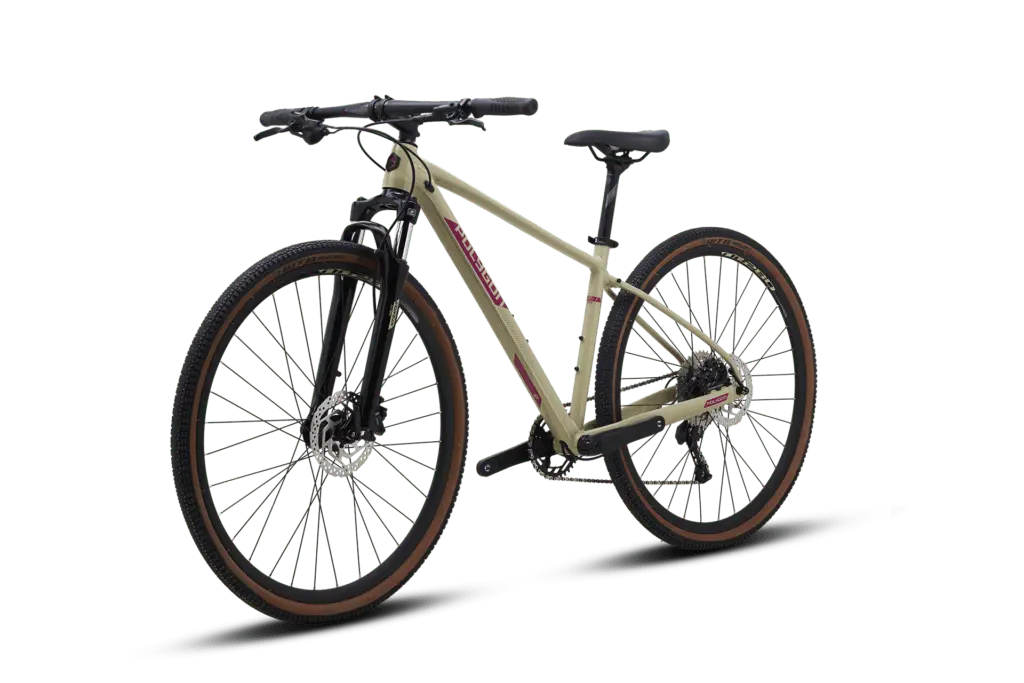

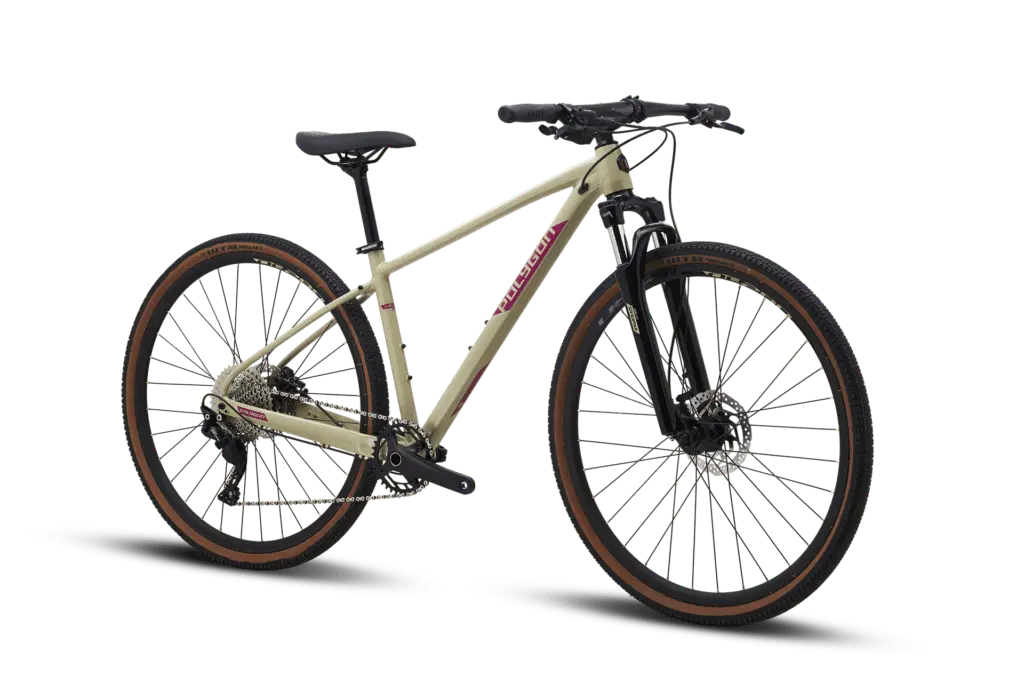

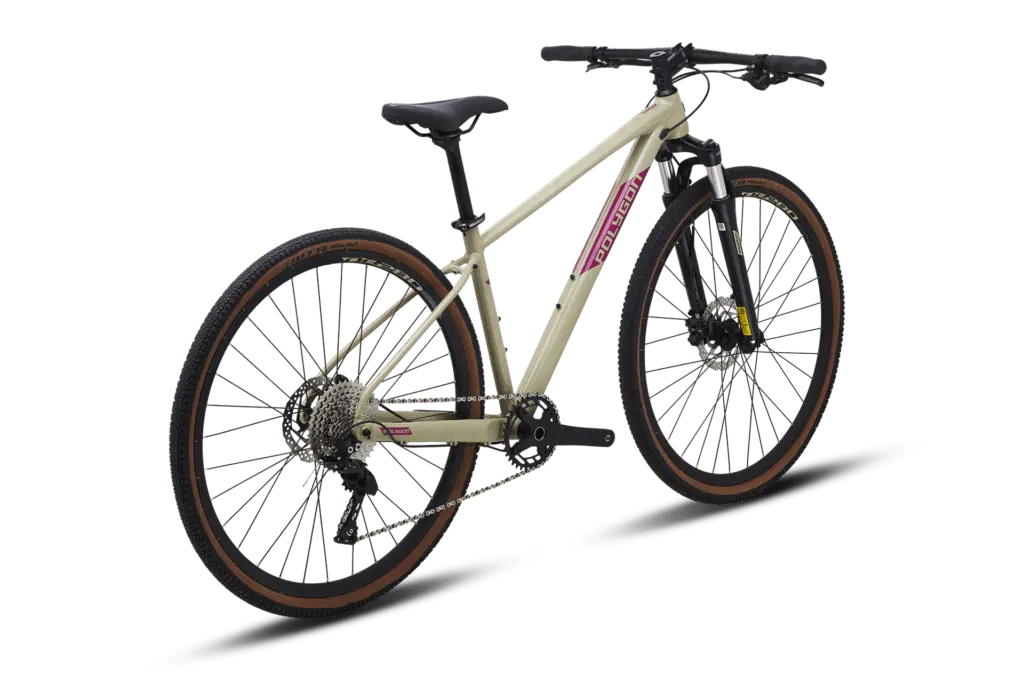

Heist X is a durable urban bike providing a comfort city riding with mountain bike durability for light off-road adventures. Urban bike with MTB soul – this bike is one of the best solution for any urban warrior looking for a durable commuting bike providing a comfort riding position & short fun weekend ride on their local singletracks.
|
AL6 URBAN CROSS, 12x142mm O.L.D. 2HRU |
|
SUNTOUR NVX, PRELOAD ADJUSTER, HYDRAULIC LOCK OUT, STRAIGHT 1-1/8″ THREADLESS |
|
– |
|
INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40 |
|
ENTITY XPERT, EXT: 60mm (400, 431) / 80mm (470, 516), BAR BORE: 31.8mm, RISE/DROP: 7degree |
|
ENTITY XPERT, EXT: 700mm, BAR BORE: 31.8mm, RISE/DROP: 0mm, BEND: 6degree |
|
SHIMANO DEORE RD-M6000/RD-M4120 DIRECT ATTACH |
|
SHIMANO DEORE SL-M6000/SL-M4100, 1X10 SPEED TRIGGER |
|
THREADED BB, BSA THREADED 68mm |
|
PROWHEEL CHARM, 36T 2-PIECE-CRANK, MAX CHAINRING: 38T, CRANK ARM: 170mm (S, M) / 175mm (L, XL) |
|
SHIMANO CS-HG500, 10-SPEED 11-42T |
|
KMC X10-1 |
|
PP CAGE PEDAL W/ REFLECTOR |
|
SHIMANO BR-MT201 HYDRAULIC DISC BRAKE, ROTOR: SHIMANO SM-RT26 160mm 6-BOLTS |
|
ALLOY DOUBLE WALL |
|
WTB RIDDLER TIRE 700X45C |
|
ENTITY SADDLE, STEEL ø 7mm |
|
ENTITY XPERT, DXL: 27.2X350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR |
|
700 |
|
CREAM |
| Height/cm | 150-160 | 160-170 | 170-180 | 180-190 |
|---|---|---|---|---|
| Size | S | M | L | XL |
| Heist X | ✔ | ✔ | ✔ | ✔ |
Geometry
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 400 | 74 | 74 | 90 | 71 | 563.12 | 289.5 | 70 (Drop) | 440 | 1063.12 | 385 | 621.18 | 688.3 |
| M | 431 | 74 | 74 | 90 | 71 | 593.12 | 289.5 | 70 (Drop) | 440 | 1093.12 | 415 | 621.18 | 708.7 |
| L | 470 | 74 | 74 | 100 | 71 | 620.8 | 289.5 | 70 (Drop) | 440 | 1121.43 | 440 | 630.64 | 742.5 |
| XL | 516 | 74 | 74 | 110 | 71 | 648.54 | 289.5 | 70 (Drop) | 440 | 1149.63 | 465 | 640.1 | 781.5 |
