Unlock Your Cycling Potential—Call Us at 8591220335 for Expert Advice!

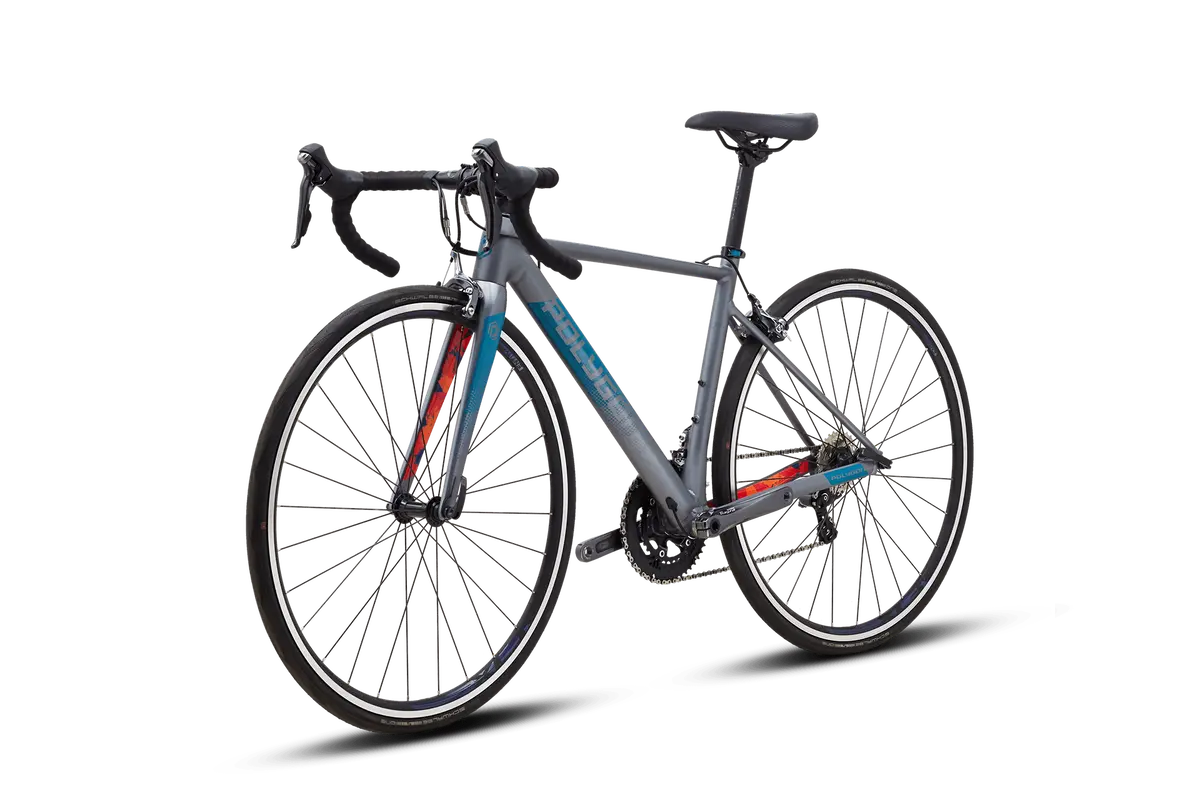

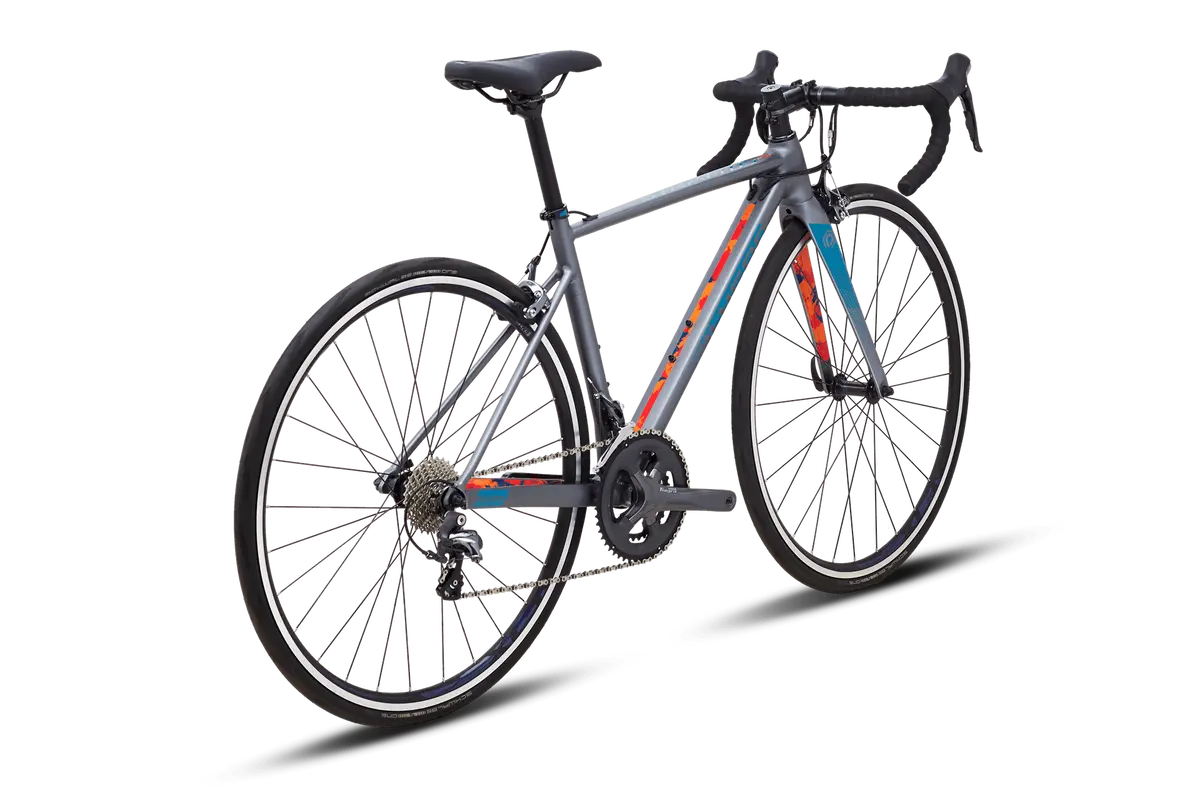

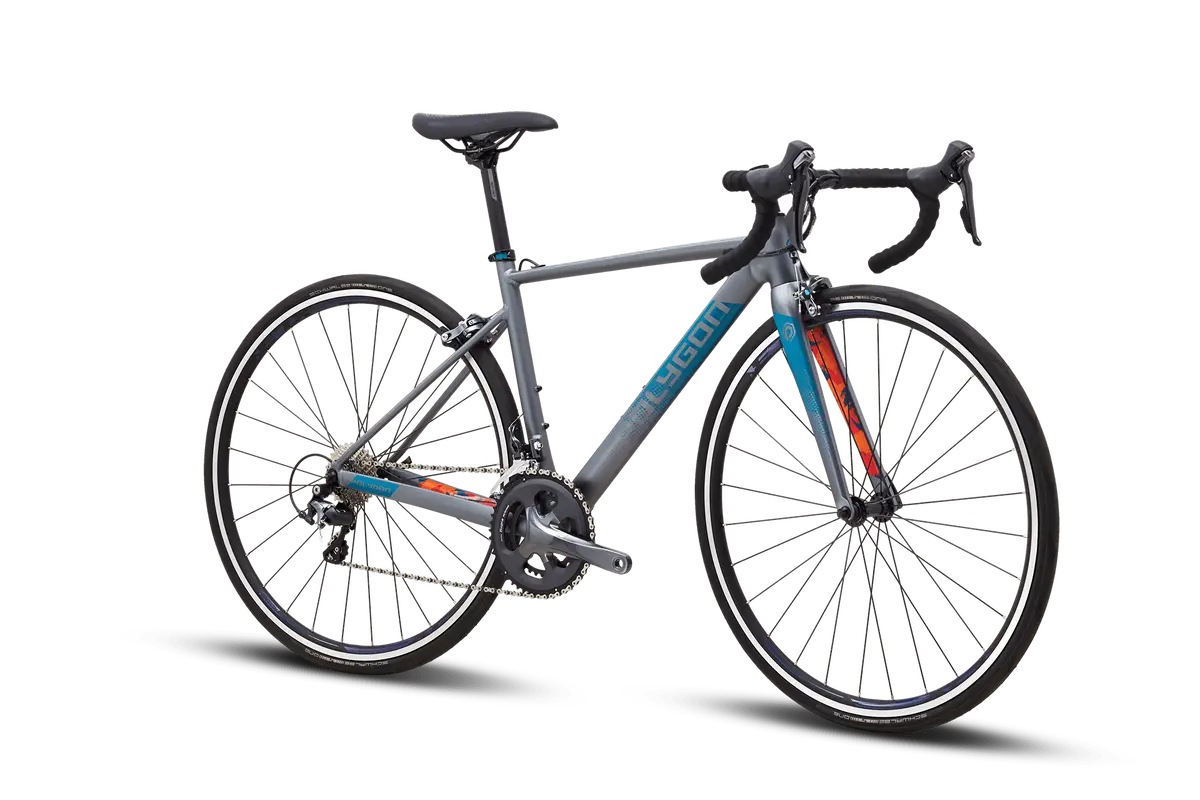

The all-new Strattos defines a new way of experiencing the road. Built with alloy frame and carbon fork, whether for a scenic ride with friends or a high-adrenaline race around the block; Strattos is the best friend that would always be ready to ride with you.
Specifications
|
ALX ALL-ROUND, HUB SPACING: QRx130mm |
|
ACX ALL-ROUND, TAPER 1-1/8″ TO 1-1/2″ |
|
– |
|
ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40 |
|
ENTITY SPORT ALLOY, EXT: 90mm (XS, S) / 100mm (M, L) / 110mm (XL), BAR BORE: 31.8mm, RISE/DROP: 7degree |
|
ENTITY SPORT ALLOY, W: 400mm (XS, S, M) / 420mm (L, XL), BAR BORE: 31.8mm, RISE/DROP: 124mm, BEND/REACH: 80mm |
|
SHIMANO TIAGRA RD-4700-SS DIRECT ATTACH |
|
SHIMANO TIAGRA ST-4700, 2×10-SPEED DUAL CONTROL LEVER |
|
SHIMANO BSA THREADED FOR 2-PIECE CRANKSET |
|
SHIMANO TIAGRA FC-4700 50/34T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL) |
|
SHIMANO CS-HG500 12-28T SPROCKET |
|
KMC X10 |
|
– |
|
SHIMANO TIAGRA |
|
– |
|
PERFORMANCE TIRE 700x28C |
|
ENTITY, STEEL ø 7mm |
|
ENTITY SPORT ALLOY, DXL: 27.2 x 350mm, OFFSET: 15mm |
|
700C |
|
– |
|
– |
| HEIGHT / cm | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
|---|---|---|---|---|---|
| SIZE | XS | S | M | L | XL |
| STRATTOS S | ✔ | ✔ | ✔ | ✔ | ✔ |
Geometry
| A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Size | Seat Tube Length | Seat Tube Angle | Effective Seat Tube Angle | Head Tube Length | Head Tube Angle | Effective Top Tube | BB Height | BB Offset | Chainstay Length | Wheelbase | Frame Reach | Frame Stack | Standover Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 450 | 75 | 75 | 90 | 72 | 515 | 272 | 72.5 Drop | 415 | 975.54 | 382.5 | 494.4 | 696.7 |
| S | 470 | 74.5 | 74.5 | 105 | 72.5 | 525 | 272 | 72.5 Drop | 415 | 977.32 | 383.5 | 510.3 | 715.7 |
| M | 500 | 74 | 74 | 130 | 73 | 540 | 274.5 | 70 Drop | 415 | 984.83 | 387.1 | 533.3 | 746.5 |
| L | 520 | 73.5 | 73.5 | 155 | 73 | 555 | 274.5 | 70 Drop | 415 | 995.01 | 390 | 557.2 | 767.1 |
| XL | 550 | 73 | 73 | 185 | 73 | 570 | 277 | 67.5 Drop | 415 | 1005.89 | 391.6 | 583.4 | 521.2 |
