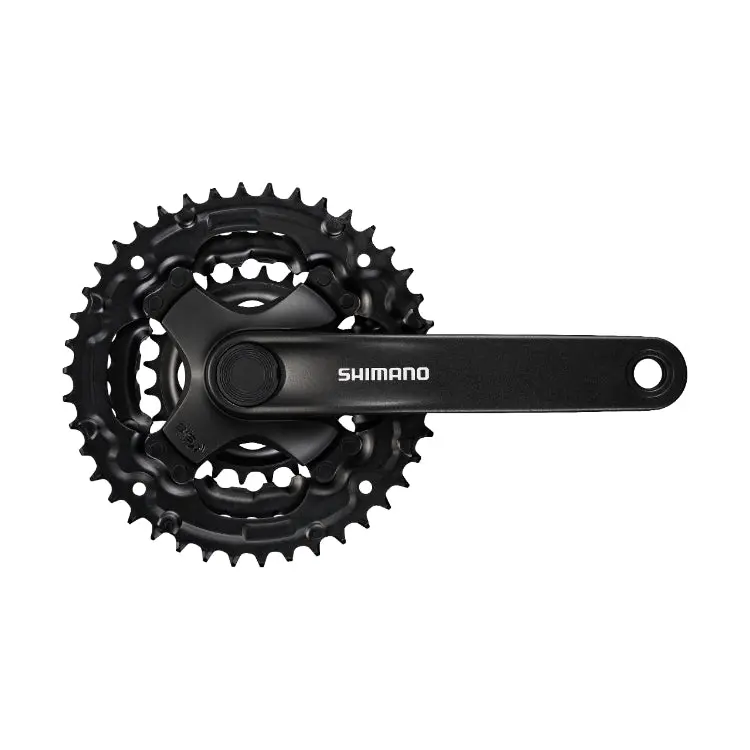

Shimano FC-TY301 Tourney Crankset — Compatible with 6-, 7-, and 8-Speed Drivetrains, 150mm Crank Length

Description

Description

Shimano Tourney TY MTB Crankset 181.5 mm Q-Factor 3×8/7/6-speed FC-TY301
Compatible with 3×8, 3×7, and 3×6 speed drivetrains, the SHIMANO TOURNEY TY crank delivers reliable, precise DUAL SIS shifting.

Features

• Light and reliable shifting
• Precision indexed shifting
• DUAL SIS
• Versatile performance
• Wide compatibility with multiple components
• Quick and precise assembly

Specifications

• Model No: FC-TY301
• Series: Tourney
• Color: Black
• Remarks: 150 mm spec. Available for 42-34-22T (Black) * Bottom bracket Spec for Chain line 50 mm
• Rear speeds: 8/7/6
• Compatible chain: HG 8/7/6-speed
• Chain line (mm): 47.5/47.5 + t/50
• O.L.D.|Thru (mm): 142
• O.L.D.|QR/Nut (mm): 135
• P.C.D. (mm): Riveted
• Spider/Gear arms: 4
• Chainring combination: 42-34-24T 48-38-28T
• Q-factor (mm): 181.5
• Crank arm length (mm)|170: ✔
• Crank arm length (mm)|175: ✔
• Optional chain guard|With chain guard: X (integrated type)
• Optional chain guard|Without chain/bash guard: ✔
• Compatible bottom bracket type|Square: ✔
• Recommended bottom bracket|Threaded (normal): BB-UN101, BB-UN300
• Recommended bottom bracket|Threaded (chain case): BB-UN101-K, BB-UN300K
• Axle length of BB-UN/ES (mm)|Threaded (normal): D-NL, *D-EL
• Axle length of BB-UN/ES (mm)|Threaded (chain case): D-NL K
• Threaded bottom bracket shell width (mm)|68: ✔
• Threaded bottom bracket shell width (mm)|73: ✔
• Chain case compatible: ✔
