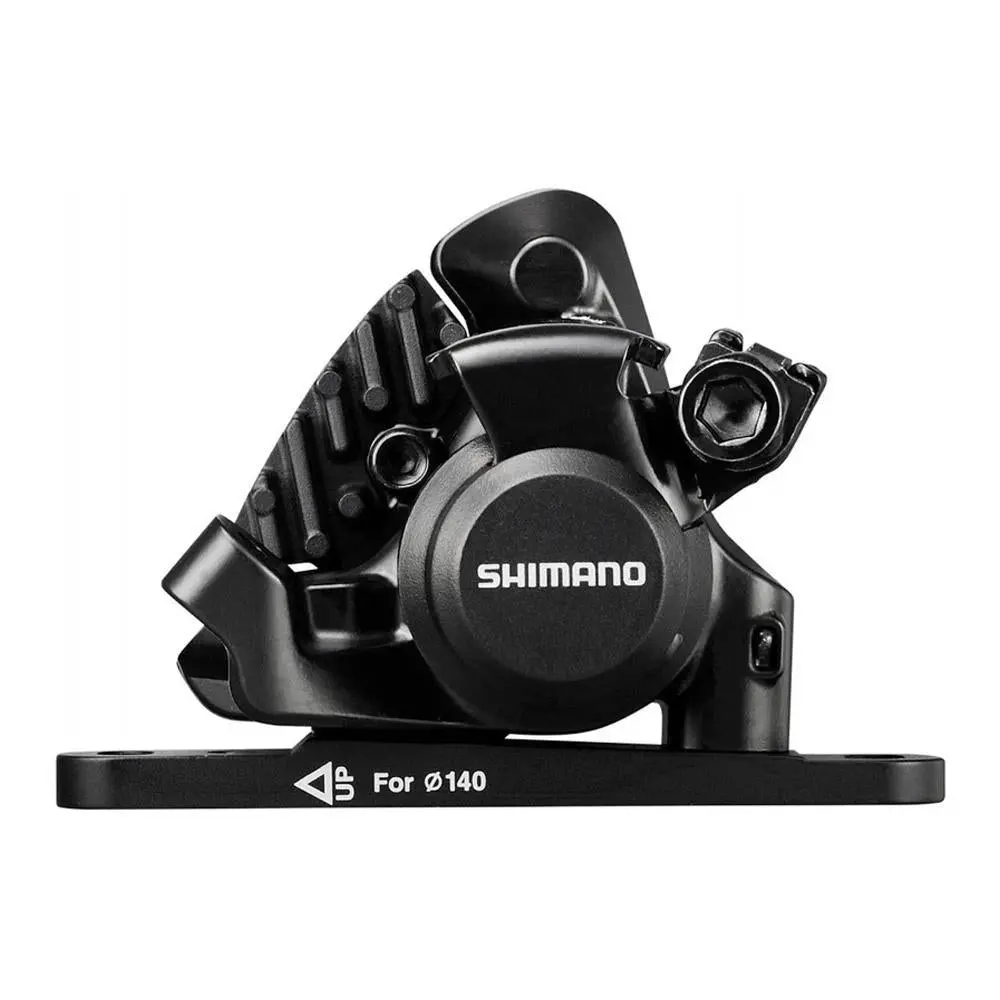

SHIMANO – Flat Mount – Mechanical Disc Brake – Rear Caliper
The SHIMANO RS305 mechanical disc brake is easy to control as well as set up and maintain. It mounts via SHIMANO’s Flat Mount interface.
PRODUCT SPECIFICATIONS
| MODEL NO | BR-RS305-R |
|---|---|
| SERIES | SHIMANO |
| Color | Black |
| Remarks | SHIMANO logo |
| Brake type | Mechanical disc brake |
|---|---|
| Compatibility | NEW SUPER SLR |
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
| Pad|Option 1 | L05A-RF Resin (w/ fin) |
| Fixing screw spec for rear mount|10 mm mount | ✔ |
| Fixing screw spec for rear mount|15 mm mount | ✔ |
| Fixing screw spec for rear mount|20 mm mount | ✔ |
| Fixing screw spec for rear mount|25 mm mount | ✔ |
| Fixing screw spec for rear mount|30 mm mount | ✔ |
| Fixing screw spec for rear mount|35 mm mount | ✔ |
| Recommended disc brake rotor | SM-RT54/RT56 (160 mm), SM-RT70 (140 mm/160 mm) |
| Mount type | Flat mount |
| Piston | 1 |
| Caliper fixing screw|Tool size | 4 mm |
| Caliper fixing screw|Anti loosen method | Screw fix pin |
| Pad mount | Pad axle |
