Shimano RT10 Center Lock Disc Brake Rotor

Description

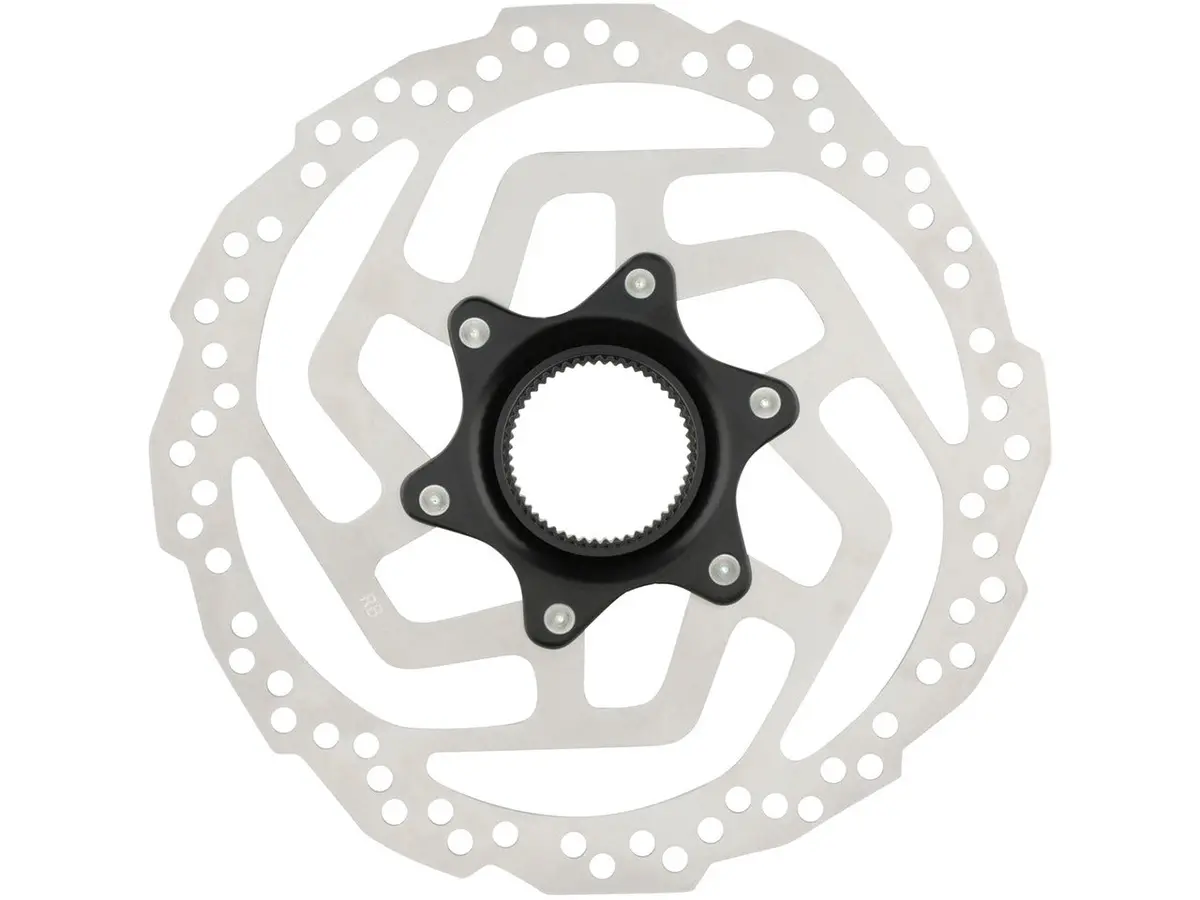

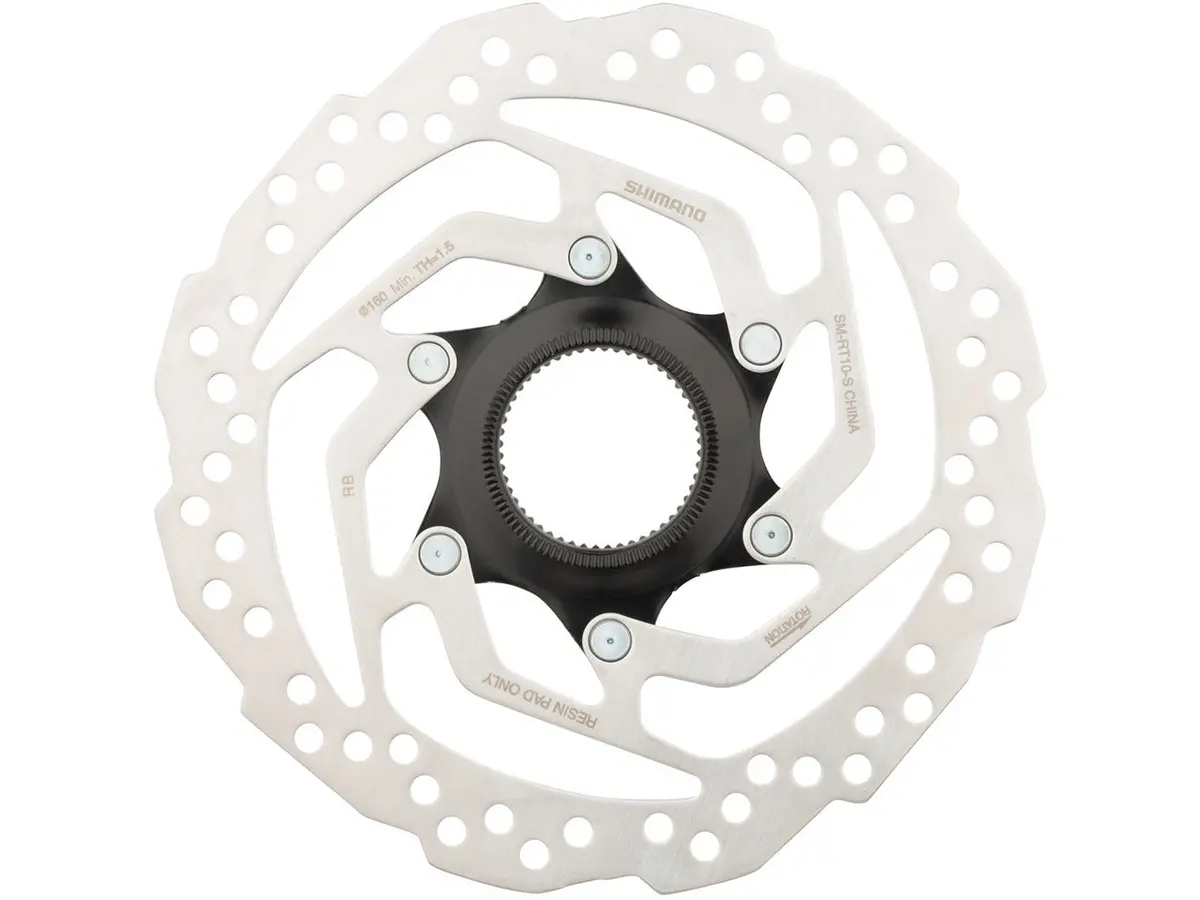

Shimano SM-RT10 Center Lock brake rotor – new lockring construction

In contrast to its predecessor, the Shimano SM-RT10 brake disc has a black lockring, which is characterised by a special design with internal and external toothing. The TL-LR11 or TL-FC36 tool is required for tightening and loosening, as appropriate. Only use the SM-RT10 brake rotors with organic brake pads.

Technical Information:

Installation: Center Lock
Diameter: 160 mm, 180 mm
Design: 2-piece
Rotor Material: stainless steel
Spider Material: steel
Lockring Material: steel

Approved For:

Brake Compatibility: BR-M9100, BR-M9120, BR-M9110-R*, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-S7000, BR-S700, BR-MT410, BR-T675, BR-T615, BR-M4050, BR-MT500, BR-M446, BR-MT400, BR-M3050, BR-M395, BR-M375, BR-MT200, BR-M365, BR-M315, BR-TX805, BR-UR300, BR-R9270*, BR-R9170**, BR-R8170, BR-R8070, BR-R7070, BR-4770, BR-RS805, BR-R785, BR-RS785, BR-RS505, BR-RS405, BR-RX810, BR-RX400
Brake Pad Compatibility: organic
* only 160 mm
** rear wheel not compatible with 180 mm

Features:

– performance indicator: select (level 1 out of 3)
– painted spider, polished rotor, painted lockring (internal and external toothing)
– for brake pads with wide pad shape

Manufacturer Numbers:

160 mm: ESMRT10S2
180 mm: ESMRT10M2

Contents:

– 1 x Shimano SM-RT10 brake rotor
– 1 x lockring (black)
