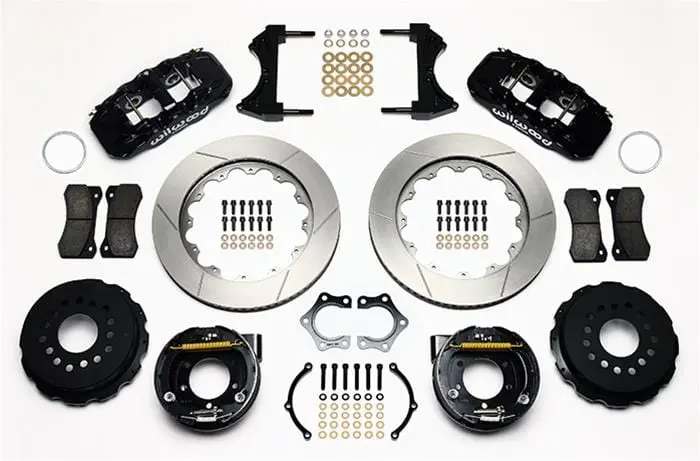

Wilwood Aero4 Rear Big Brake Kit With Integrated Parking Brake System (Model 140-10951)

Description

Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-10951
Part Type: Disc Brake Kits
Product Line: Wilwood AERO4 Big Brake Rear Parking Brake Kits
Automotive Fittings Part Number: WIL-140-10951
UPC: 889545011241
Position: Rear
Disc Brake Kit Type: Heavy-duty
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Differential Case Design Type: Chrysler 8.75/9.75 in./Dana 60
Axle Housing Flange Style: Mopar/Dana 60 5-Bolt (2.875 in. Bearing)
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 2.360 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Fits multiple vehicles with 8.75 in. Mopar/9.75 in. Mopar/Dana 60 rear end.
Description:
Wilwood AERO4 Big Brake rear parking brake kits replace the factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades on late model trucks, SUVs, and high performance vehicles. High-capacity braking from the AERO4 calipers (black or red powdercoat), high-friction BP compound pads, and oversized rotors (slotted or drilled/slotted) are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Wilwood AERO4 Big Brake rear parking brake kits provide enhanced brake performance, increased durability, and high-tech style to complement big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
